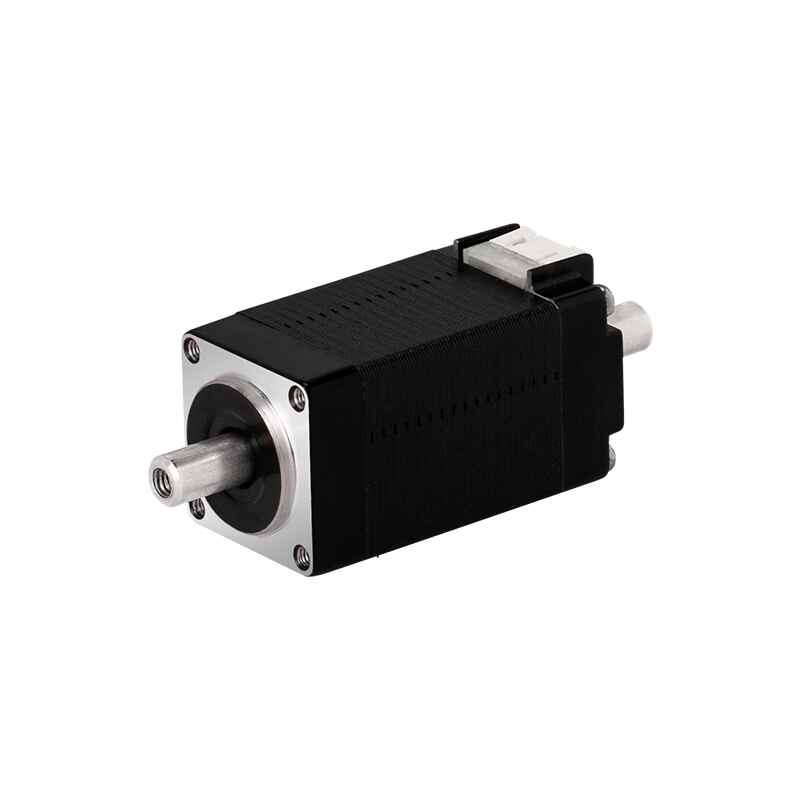

F07-20D1-1007-ZK32 Stepper Motor with 1.8° Step Angle and 25mN.m Holding Torque

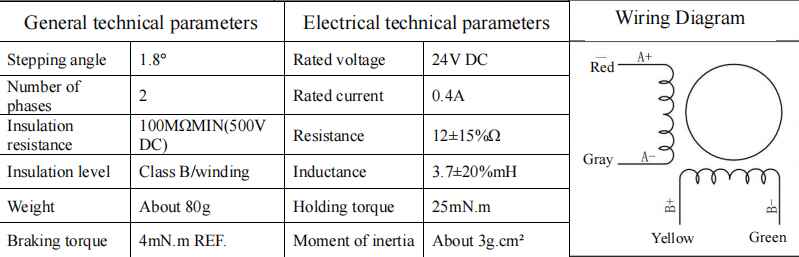

General technical parameters		Electrical technical parameters
Stepping angle	1.8°	Rated voltage	24V DC
Number of phases	2	Rated current	0.4A
Insulation resistance	100MΩMIN(500V DC)	Resistance	12±15%Ω
Insulation level	Class B/winding	Inductance	3.7±20%mH
Weight	About 80g	Holding torque	25mN.m
Braking torque	4mN.m REF.	Moment of inertia	About 3g.cm²
