    F07-20D1-1402-E1000 20mm close loopTwo-phase 20 step motor

    ₹ 32472/pcs

    14 day delivery


    Request Bulk Pricing

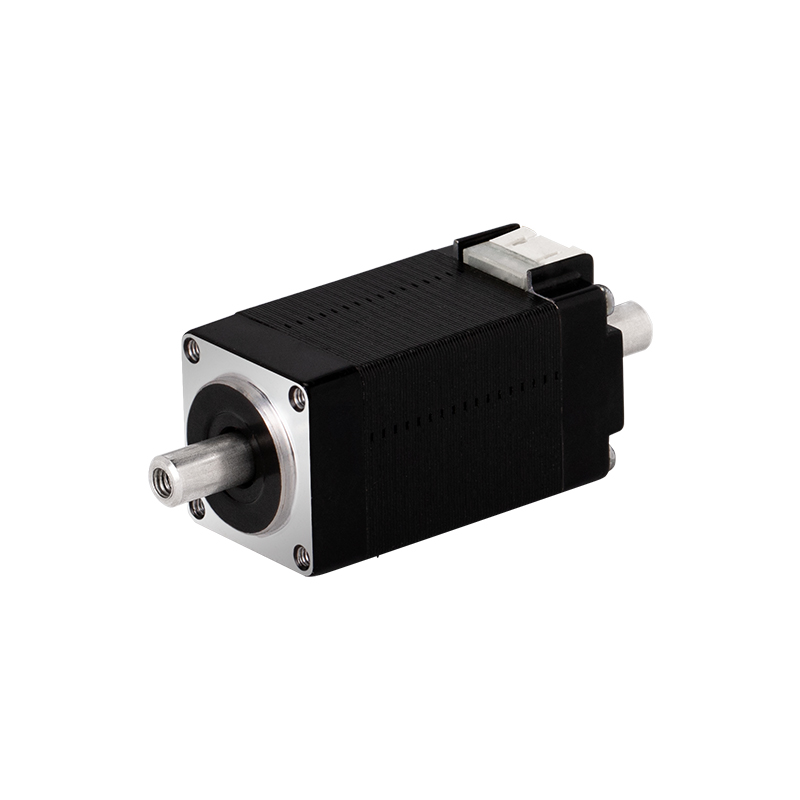

    F07-20D1-1402-E1000 Precision Stepper Motor with 22mN.m Holding Torque and High Efficiency

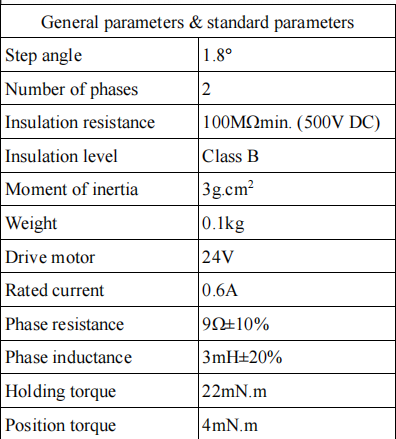

    General parameters & standard parameters
    Step angle1.8°
    Number of phases2
    Insulation resistance100MΩmin. (500V DC)
    Insulation levelClass B
    Moment of inertia3g.cm2
    Weight0.1kg
    Drive motor24V
    Rated current0.6A
    Phase resistance9Ω±10%
    Phase inductance3mH±20%
    Holding torque22mN.m
    Position torque4mN.m
