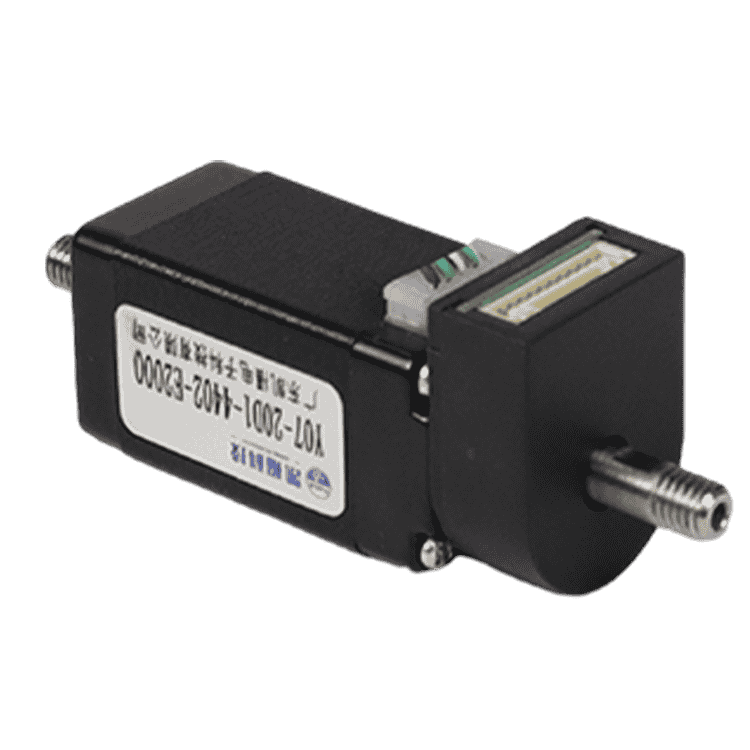

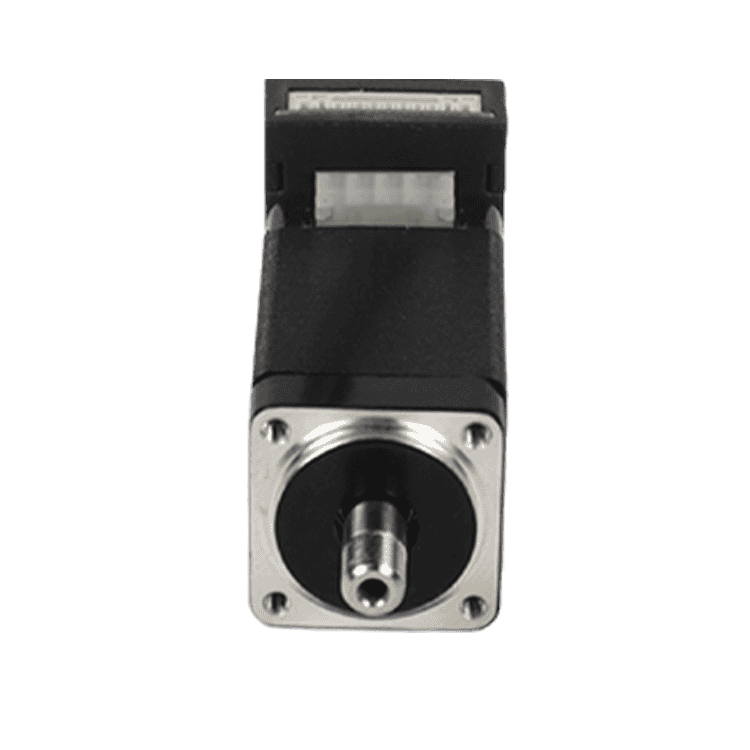

F07-20D1-4402-E2000 Motor with ±5% Step Angle Accuracy and -20°C to +50°C Operating Temperature
| General parameters & standard parameters | |
| Step angle | 1.8° |
| Number of phases | 2 |
| Insulation resistance | 100MΩmin. (500V DC) |
| Insulation level | Class B |
| Moment of inertia | 3g.cm2 |
| Weight | 0.08kg |
| Drive motor | 24V |
| Rated current | 0.6A |
| Phase resistance | 6Ω±10% |
| Phase inductance | 2mH±20% |
| Holding torque | 32mN.m |
| Position torque | 4mN.m |
