    F07-28D1-2003-ZK52 28mm Hollow shafttwo phase 28 stepper motor

    ₹ 7872/pcs

    14 day delivery


    Request Bulk Pricing

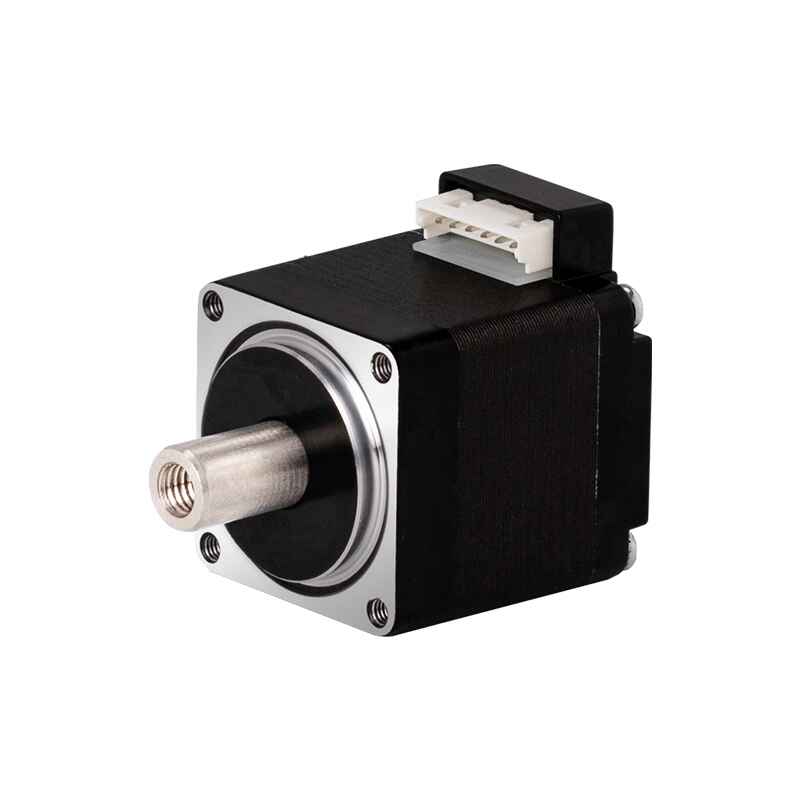

    F07-28D1-2003-ZK52 Stepper Motor with 1.8° Step Angle and 60mN.m Holding Torque

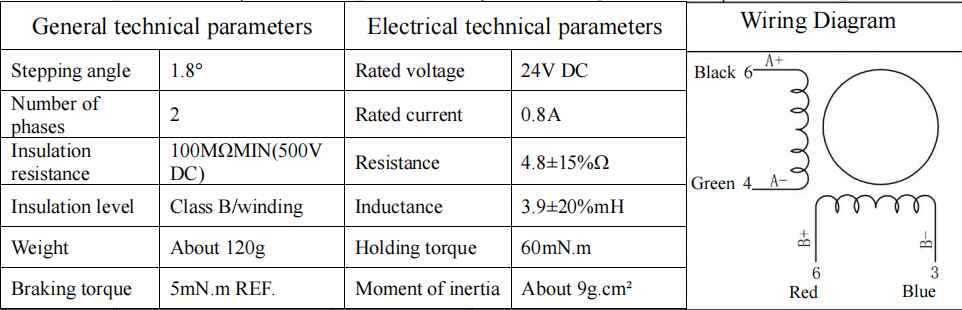

    General technical parametersElectrical technical parameters
    Stepping angle1.8°Rated voltage24V DC
    Number of phases2Rated current0.8A
    Insulation resistance100MΩMIN(500V DC)Resistance4.8±15%Ω
    Insulation levelClass B/windingInductance3.9±20%mH
    WeightAbout 120gHolding torque60mN.m
    Braking torque5mN.m REF.Moment of inertiaAbout 9g.cm²
