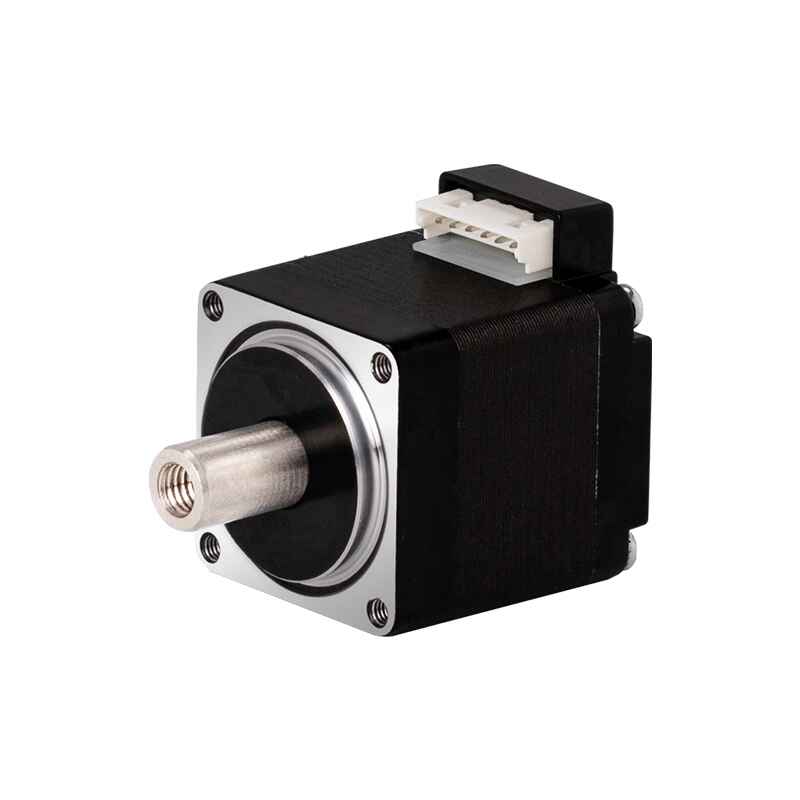

    F07-28D1-3401ZK-E1000 28mm Hollow shaft close looptwo phase 28 stepper motor

    ₹ 34194/pcs

    14 day delivery


    Request Bulk Pricing

    F07-28D1-3401ZK-E1000 High-Torque Stepper Motor with 60mN.m Holding Torque and Enhanced Stability

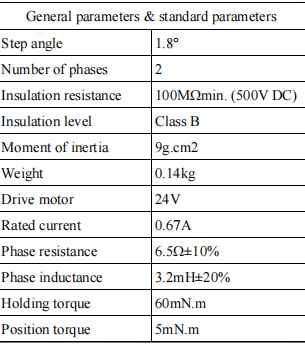

    General parameters & standard parameters
    Step angle1.8°
    Number of phases2
    Insulation resistance100MΩmin. (500V DC)
    Insulation levelClass B
    Moment of inertia9g.cm2
    Weight0.14kg
    Drive motor24V
    Rated current0.67A
    Phase resistance6.5Ω±10%
    Phase inductance3.2mH±20%
    Holding torque60mN.m
    Position torque5mN.m
