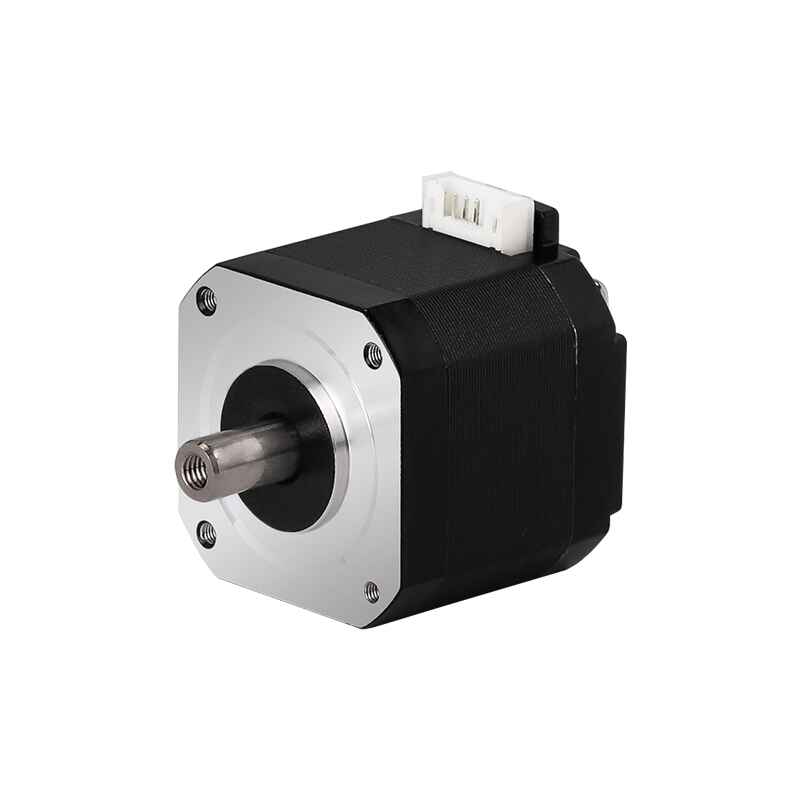

    F07-43D1-4002-ZK52 42mm Hollow shafttwo phase 42 stepper motor

    ₹ 8610/pcs

    14 day delivery


    Request Bulk Pricing

    F07-43D1-4002-ZK52 High Torque Stepper Motor, 1.8° Step Angle, 380mN.m Holding Torque

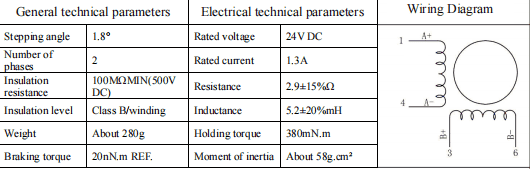

    General technical parametersElectrical technical parameters
    Stepping angle1.8°Rated voltage24V DC
    Number of phases2Rated current1.3A
    Insulation resistance100MΩMIN(500V DC)Resistance2.9±15%Ω
    Insulation levelClass B/windingInductance5.2±20%mH
    WeightAbout 280gHolding torque380mN.m
    Braking torque20nN.m REF.Moment of inertiaAbout 58g.cm²
