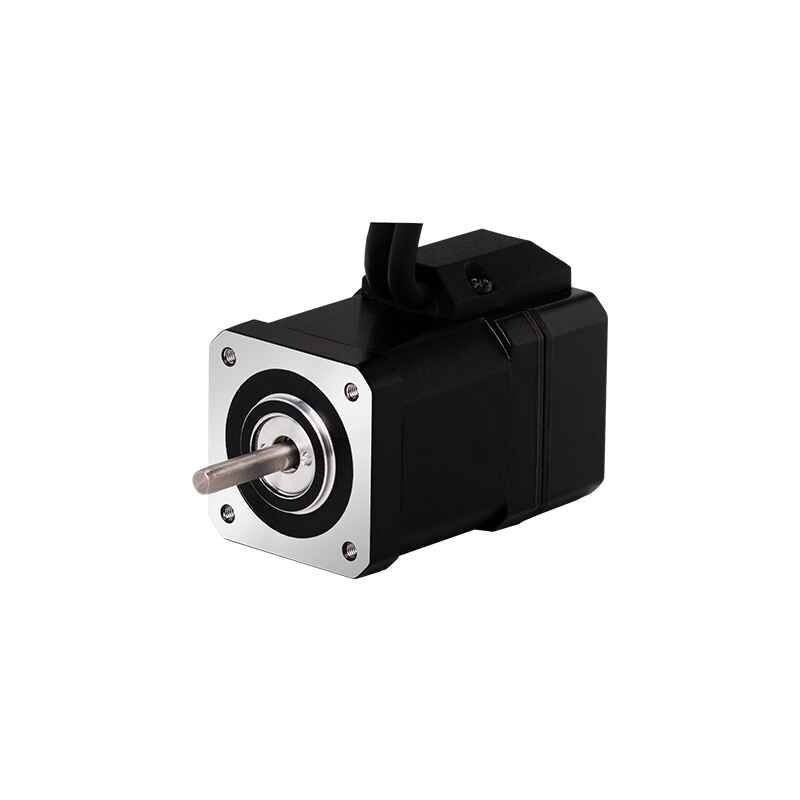

    42K48-E1000 28mm Hollow shaft close looptwo phase 42 stepper motor

    ₹ 8856/pcs

    14 day delivery


    Request Bulk Pricing

    High-Precision 42K48-E1000 Motor with ±0.09° Angular Accuracy and Wide Humidity Tolerance

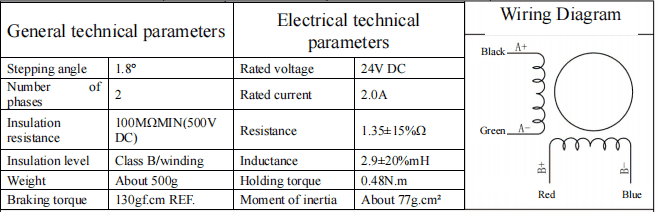

    General technical parameters
    Electrical technical
    parameters

    Stepping angle1.8°Rated voltage24VDC
    Number        of
    phases    		2 Rated current2.0A
    Insulation
    resistance    		100MQMIN(500V
    DC)    		Resistance1.35±15%Q
    Insulation levelClass B/windingInductance2.9±20%mH
    WeightAbout 500gHolding torque0.48N.m
    Braking torque130gf.cm REF.Moment of inertiaAbout  77g.cm²
